Project Summary
External Wall Insulation Swanley BR8 was installed on this pre-1930s residential property, significantly improving thermal performance while enhancing the home’s external appearance with a clean, modern finish.
Project Overview
- Location: Swanley (BR8) and surrounding areas including Hextable, Wilmington, Dartford, Crayford and Orpington
- Service Provided: External Wall Insulation (EWI)
- Insulation System: Expanded Polystyrene (EPS) chemically bonded and mechanically fixed
- Property Type: Semi-detached residential house
- Construction Period: Pre-1930 solid wall construction
- Wall Build-Up: Traditional solid masonry walls (no cavity)
- Pre-Installation Condition: Weathered and deteriorating roughcast render with visible cracking and surface degradation
- Performance Issues Identified: Cold internal wall surfaces, localised damp staining, surface condensation and poor thermal retention
- Project Objective: Improve thermal performance, reduce condensation risk and provide a durable modern external finish
- Final Finish: 1.5mm smooth silicone render system
Technical Details: Solid Wall Insulation Swanley BR8
- External Wall Insulation System: EWI Pro certified EWI system
- Insulation Material: Expanded Polystyrene (EPS)
- Insulation Thickness: 90mm EPS boards selected to suit existing solid wall construction and achieve meaningful thermal improvement
- Target U-Value: 0.30 W/m²K
- Fixing Method: Chemically bonded using proprietary adhesive and mechanically fixed to solid masonry substrate
- Mechanical Fixings: 8mm diameter, 135mm length, metal pin hammer-set fixings
- Reinforcement Layer: Polymer-modified basecoat with embedded alkali-resistant fibreglass mesh to enhance impact resistance and minimise cracking risk
- Finish Coat: 1.5mm grain silicone render
- Colour: Pure White
- Performance Characteristics: Vapour-permeable, water-repellent façade finish designed for long-term durability in UK weather conditions
- Detailing: Careful treatment to all openings, corners and junctions including installation of powder-coated aluminium window oversills (1.2mm thick, 150mm depth) extending beyond the new insulation line to maintain effective drip protection
- Outcome: This External Wall Insulation Swanley BR8 project delivered enhanced thermal performance, reduced internal cold bridging and condensation risk, and a clean, contemporary external finish
Project Outcomes: External Wall Insulation Swanley BR8 – Thermal & Aesthetic Benefits
- Superior Thermal Performance: Successfully insulated the original solid masonry, forming a high-performance thermal envelope that significantly reduces heat loss.
- Eliminated Cold Spots: Increased internal wall surface temperatures, removing the typical “chill” associated with pre-1930s solid wall homes.
- Improved Energy Efficiency: Reduced overall heat demand, enabling the heating system to operate more efficiently and retain warmth for longer periods.
- Condensation Control: Reduced the risk of surface condensation and damp by maintaining structural wall temperatures above dew point.
- Modern Visual Upgrade: Replaced the deteriorated roughcast façade with a clean, contemporary silicone render finish.
- Precision Detailing: Delivered high-quality finishes around window reveals and junctions, ensuring the insulation system remains watertight and visually refined.
- Weather-Resistant Durability: Applied a breathable, flexible silicone topcoat designed to withstand UK weather conditions.
- Reduced Cracking Risk: Incorporated alkali-resistant fibreglass mesh within the reinforced basecoat to provide long-term flexibility.
- Low Maintenance Finish: The silicone render’s water-repellent properties reduce staining and maintenance compared to traditional painted masonry.
- Fabric Preservation: Added a protective external layer that shields the original brickwork from long-term weather exposure and freeze-thaw damage.
- EPC Support: Contributed toward improving the property’s overall energy performance and potential EPC rating.
Related Rendering & Insulation Services in Swanley
| External Wall Insulation | External Rendering |
| Self-Cleaning Render | Silicone Render |
| Sand and Cement Render | Lime Render |
| Cork Render | Monocouche Render |
| Acrylic Render | Insulated Render |
| K Rend Rendering Services | Brick Slips |
| Ashlar Cut Effect Render | Colour Render |
Other Nearby External Wall Insulation Projects
| West Wickham | Beckenham |
| Chislehurst | Bromley |
| Sundridge | Orpington |

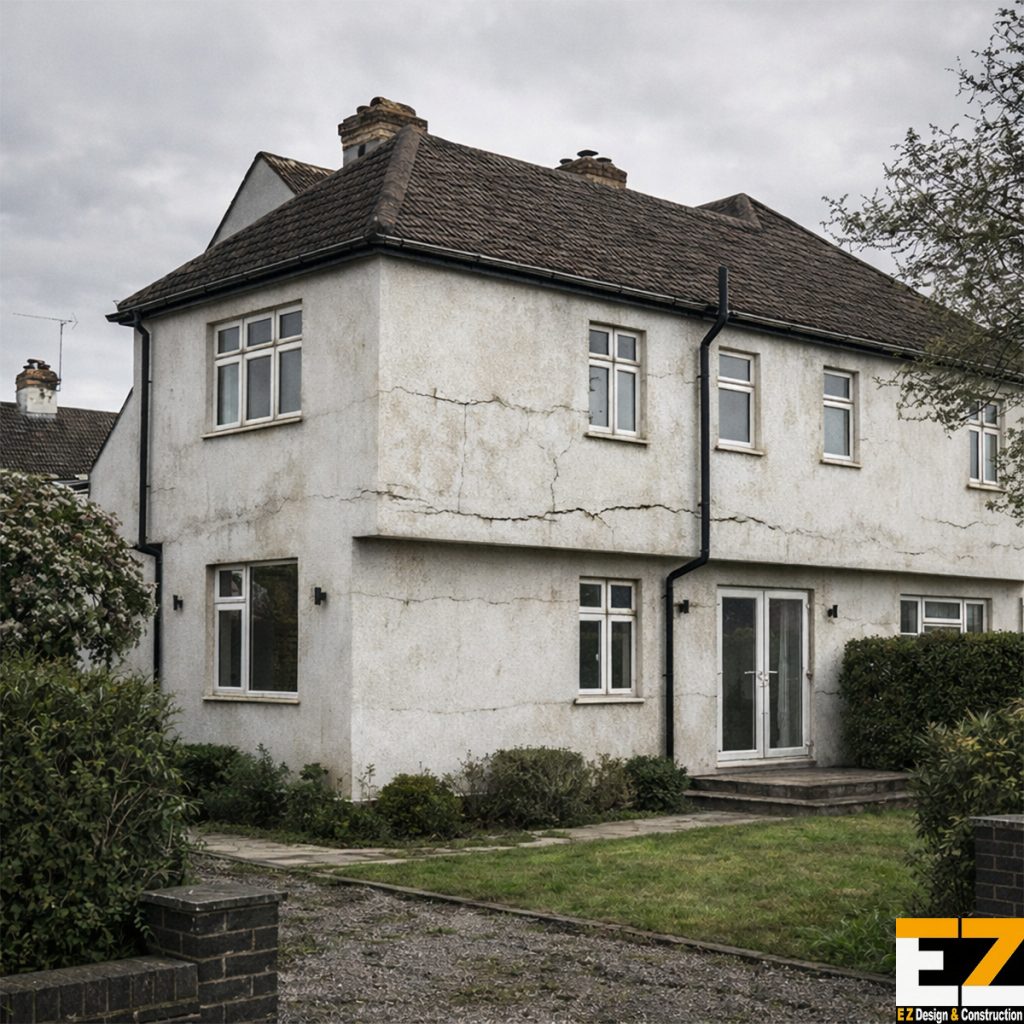

Before: This property in Swanley (BR8) shows the original solid-wall construction prior to installation. The uninsulated masonry walls were contributing to heat loss, internal cold spots and higher energy demand — common issues addressed through External Wall Insulation Swanley BR8 projects.
For full system details, installation methods and local coverage information, visit our External Wall Insulation in Swanley service page.

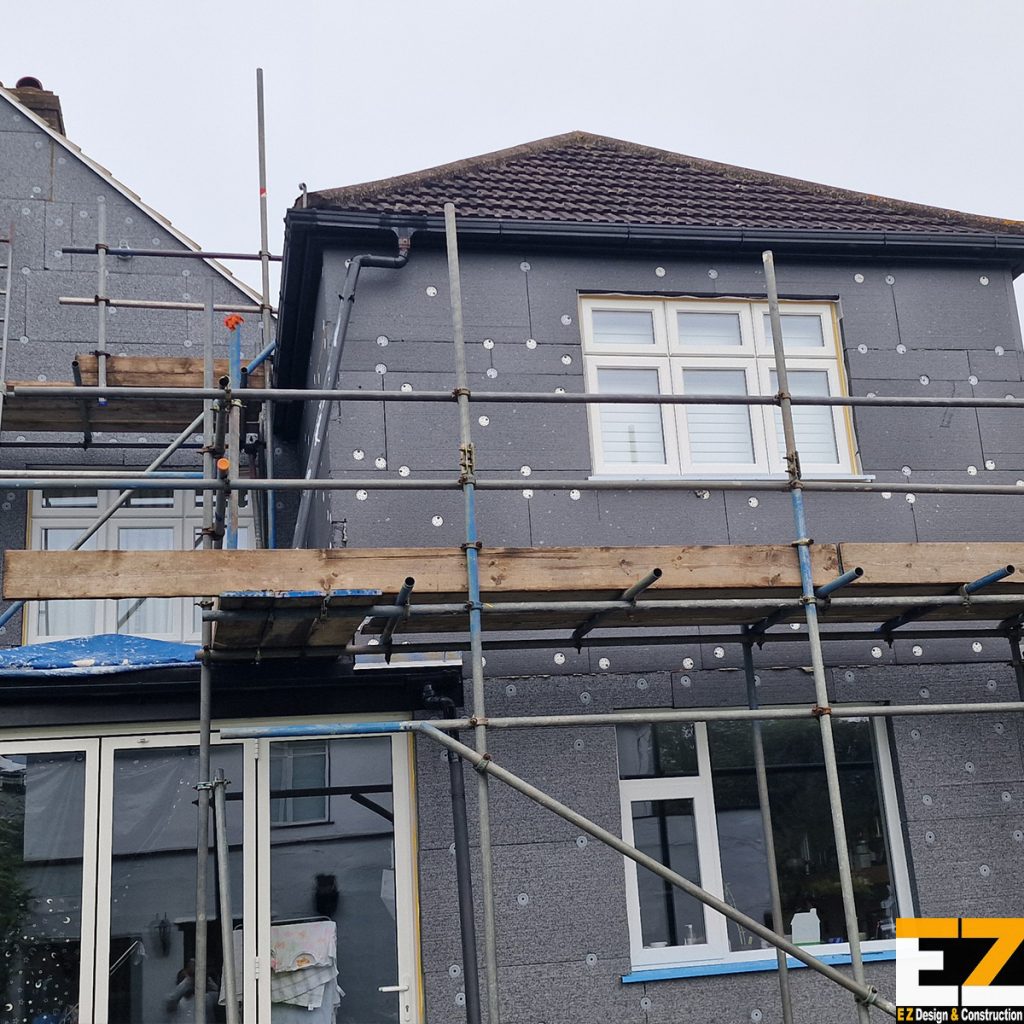

During: This stage of the External Wall Insulation Swanley BR8 project shows EPS insulation boards securely bonded and mechanically fixed to the existing solid masonry walls. Proper board alignment, staggered joints and correct mechanical fixing patterns are essential to the long-term structural stability and thermal performance of the External Wall Insulation system.
For full system specifications, insulation options and local coverage details, visit our External Wall Insulation in Swanley service page.

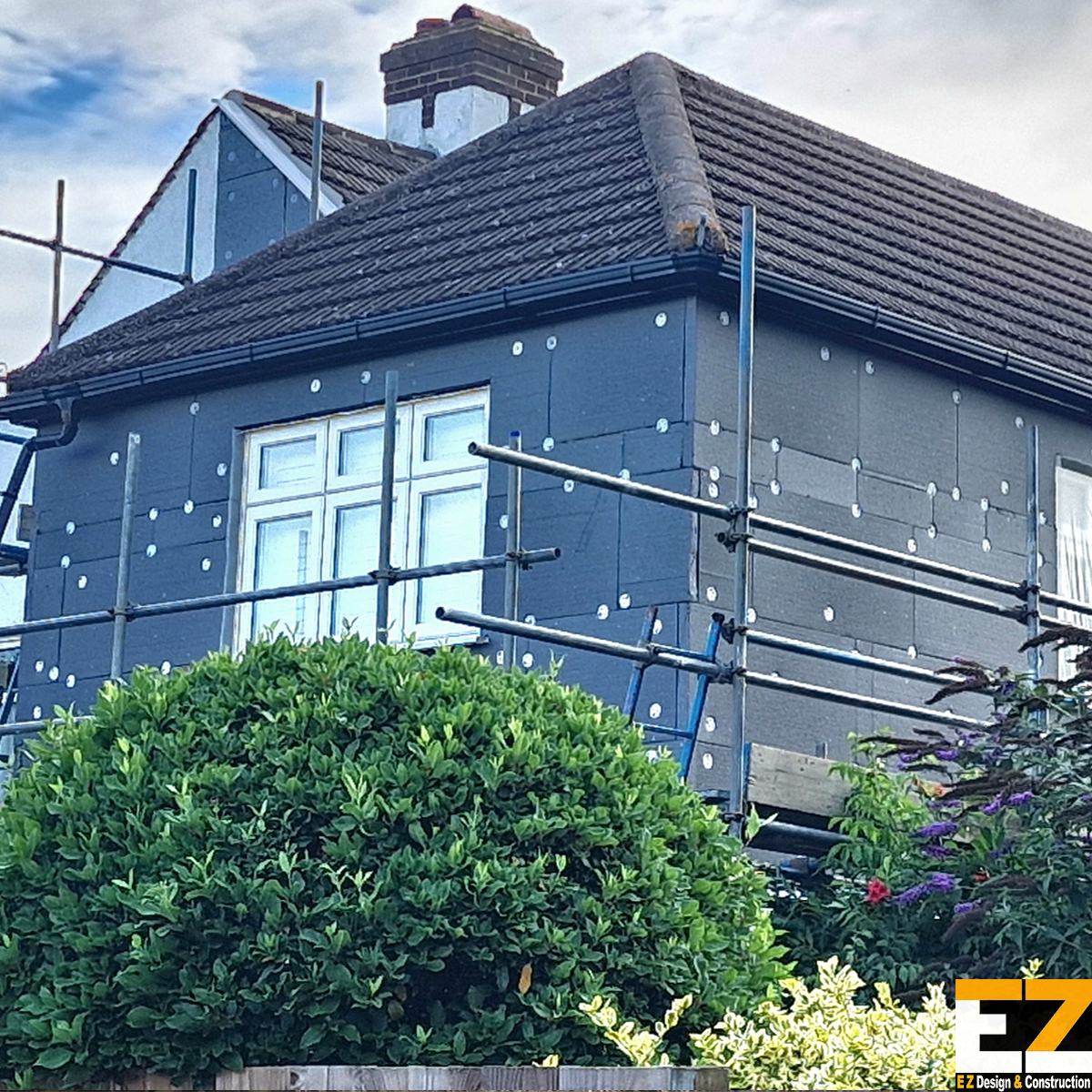

During: This stage of the External Wall Insulation Swanley BR8 installation shows EPS insulation boards securely bonded and mechanically fixed to the existing solid masonry walls. Accurate board placement, staggered joints and correct fixing density are critical components of a high-performance External Wall Insulation Swanley BR8 system, ensuring structural stability, long-term durability and improved thermal performance.
For detailed system specifications, insulation thickness options and full service information, visit our External Wall Insulation in Swanley page.
External Wall Insulation – Swanley – Frequently Asked Questions
Is this a real External Wall Insulation Swanley BR8 project?
Yes. This page documents a genuine External Wall Insulation Swanley BR8 case study completed by our team, showing key stages from insulation installation through to the silicone render finish.
What type of property is shown in this Swanley EWI case study?
This project was completed on a semi-detached residential home in Swanley (BR8). Many homes of this type benefit from an external thermal upgrade where the existing walls offer limited insulation performance.
What issues were identified before starting this Swanley installation?
Before work began, the property had an aged and weathered external finish with visible cracking and surface deterioration. Internally, uninsulated masonry can contribute to cold wall surfaces and increased heating demand.
Why is EWI Swanley suitable for solid wall homes?
EWI Swanley is particularly effective for properties with solid masonry walls, as it forms a continuous external thermal layer. This Swanley External Wall Insulation Project demonstrates how solid wall homes can significantly improve energy efficiency without reducing internal floor space.
What insulation material was used for this Swanley project?
We used Expanded Polystyrene (EPS) insulation boards as part of the external wall insulation system.
What insulation thickness was installed for this Swanley property?
We installed 90mm EPS boards to achieve a meaningful thermal improvement while maintaining neat detailing at roof lines, window reveals and boundaries.
How were the insulation boards fixed to the masonry?
The insulation boards were installed using a dual-fix approach: bonded with proprietary adhesive and mechanically fixed into the substrate to provide long-term stability.
What mechanical fixings were used on this Swanley job?
We used 8mm diameter, 135mm long metal-pin hammer-set fixings, selected to achieve secure embedment into the masonry substrate.

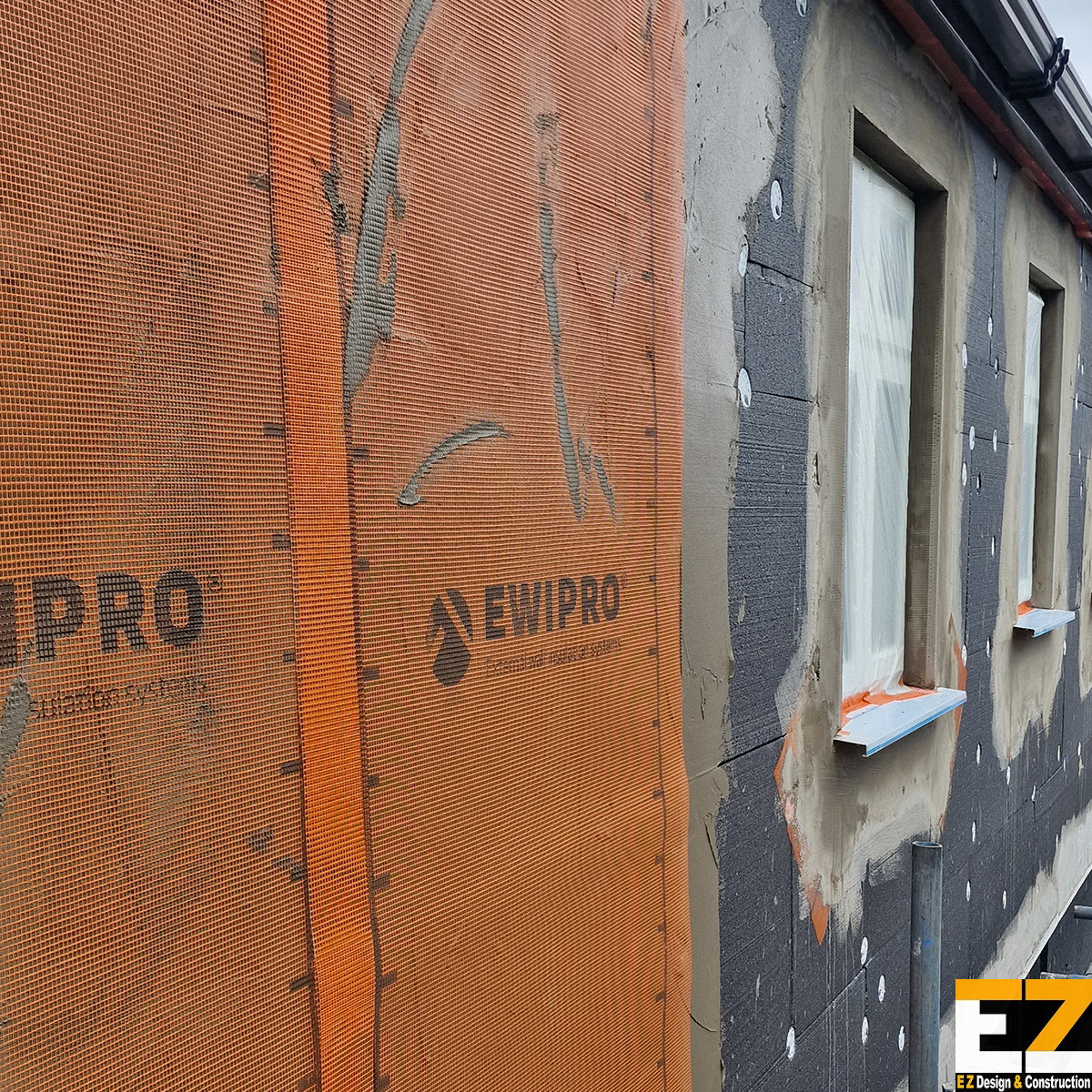

Was reinforcement mesh used on the Swanley property?
Yes. Alkali-resistant fibreglass reinforcement mesh was embedded into the basecoat as part of the reinforced layer to improve impact resistance and help minimise cracking risk.

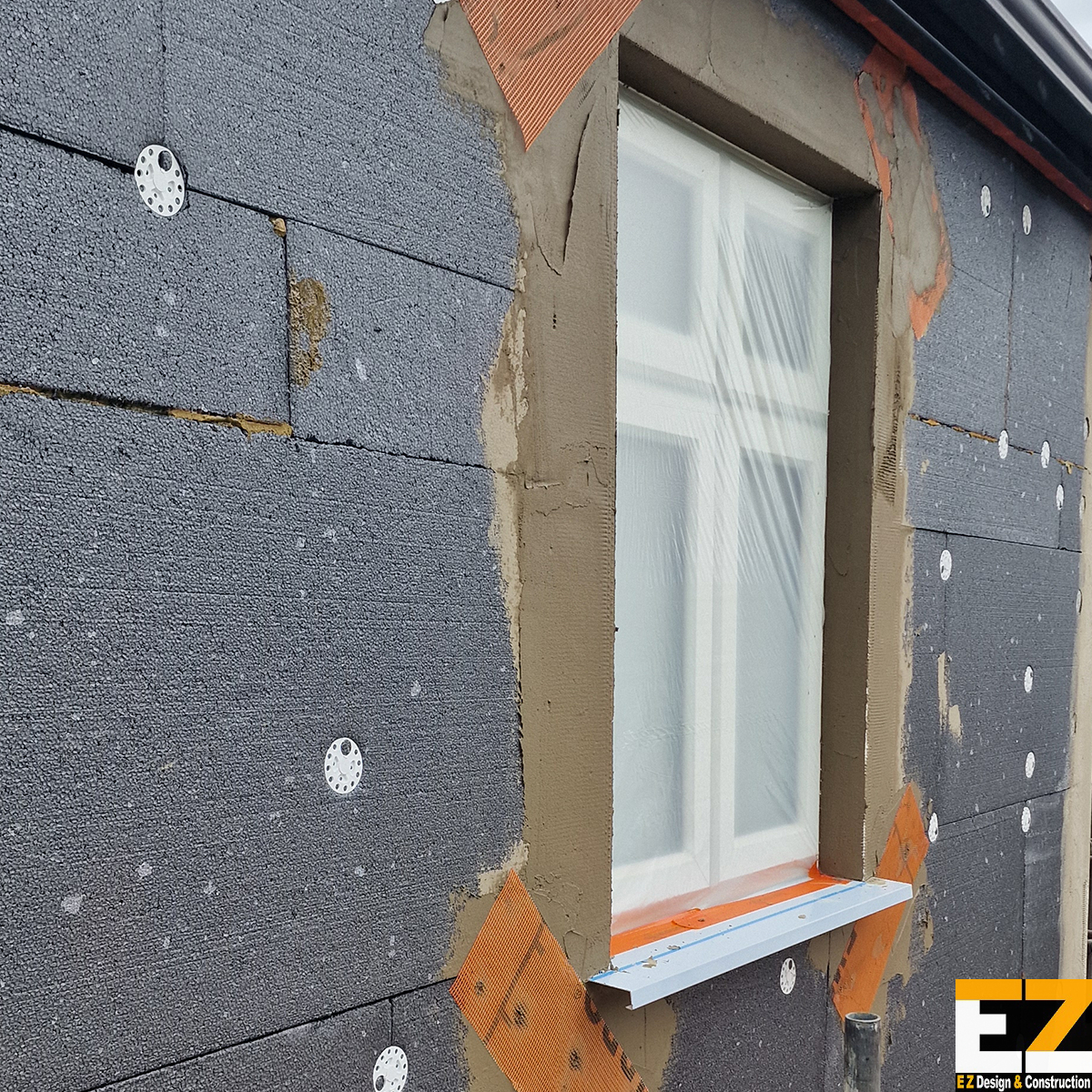

Are diagonal “stress patches” used at window corners?
Yes. We apply diagonal reinforcement mesh patches at window and door corners to reduce the risk of diagonal cracking at stress points in the render system.

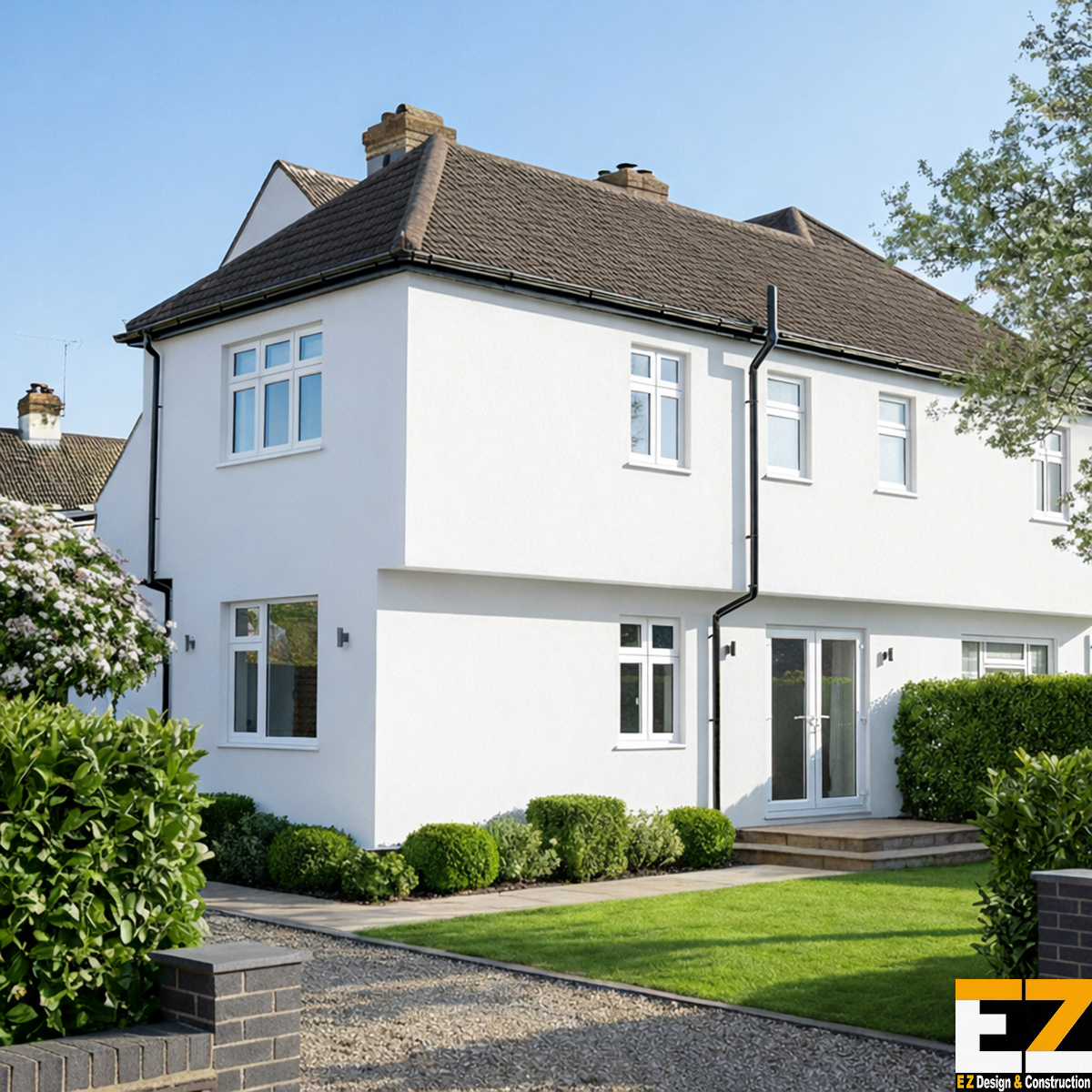

What render finish was chosen for this Swanley case study?
The project was finished with a 1.5mm grain silicone render topcoat, selected for its water-repellent performance and long-term durability.
What colour render was applied to this project?
The finished colour was Pure White, providing a clean, contemporary appearance compared to the original weathered façade.
How were window sills extended for the new insulation line?
To suit the new insulation thickness, we installed powder-coated aluminium window oversills to extend beyond the insulation line and maintain effective drip protection to help reduce façade staining.
Why choose experienced External Wall Insulation Contractors in Swanley?
Choosing experienced External Wall Insulation Contractors Swanley ensures correct board fixing, reinforcement detailing and moisture control. This Swanley project highlights the importance of proper installation standards to achieve long-term thermal performance and a durable external finish.
Does this system help with internal condensation risk?
Improving external wall thermal performance can raise internal surface temperatures, which helps reduce the conditions that lead to surface condensation in many properties.
How long does a typical EWI project in Swanley take?
Timeframes depend on access and weather, but many residential projects are completed within 2 to 3 weeks, allowing appropriate drying times between basecoat, primer and topcoat stages.
How do I maintain my new silicone render finish?
Silicone render is low maintenance. Occasional gentle cleaning and keeping gutters and overflows working correctly will help the façade stay clean and perform well long-term.
