External Wall Insulation Sidcup Case Study – Completed Project
Project confirmation: This page documents a completed external wall insulation project carried out by E Z Design and Construction Ltd on a semi-detached family property in Sidcup (DA15). For full service details, specifications and borough-wide coverage, visit our External Wall Insulation in Sidcup page. Before and After EWI Transformation
This completed external wall insulation project in Sidcup demonstrates our full installation process, from insulation board fixing to reinforced basecoat and silicone render finish. For full service details and local coverage information, visit our External Wall Insulation in Sidcup service page.
Homeowners across South East London and Kent have rated our work highly —
here are a few recent reviews
Thank you Ed.
kind regards FC
See this project on social media
Considering external wall insulation for a similar property in Sidcup? You can find full details about our installation methods, insulation systems and silicone render finishes on our External Wall Insulation in Sidcup service page.
Project Summary
External Wall Insulation Sidcup was installed on this pre-1930s residential property, significantly improving thermal efficiency while refreshing the home’s external appearance with a modern finish.
Project Overview
- Location: Sidcup (DA14 / DA15) and surrounding areas including North Cray, Blackfen, Bexley, Welling and Bexleyheath
- Service Provided: External Wall Insulation (EWI)
- Insulation System: Expanded Polystyrene (EPS) chemically bonded and mechanically fixed
- Property Type: Semi-detached residential house
- Construction Period: Pre-1930 solid wall construction
- Wall Build-Up: Traditional solid masonry walls (no cavity)
- Pre-Installation Condition: Weathered and deteriorating roughcast render with visible cracking and surface degradation
- Performance Issues Identified: Cold internal wall surfaces, localised damp staining, surface condensation and poor thermal retention
- Project Objective: Upgrade thermal efficiency, reduce condensation risk and deliver a durable modern external finish
- Final Finish: 1.5mm smooth silicone render system
Technical Details: Solid Wall Insulation Sidcup DA15
- External Wall Insulation System: EWI Pro certified EWI system
- Insulation Material: Expanded Polystyrene (EPS)
- Insulation Thickness: 90mm EPS boards selected to suit existing solid wall construction and achieve meaningful thermal improvement
- Target U-Value: 0.30 W/m²K

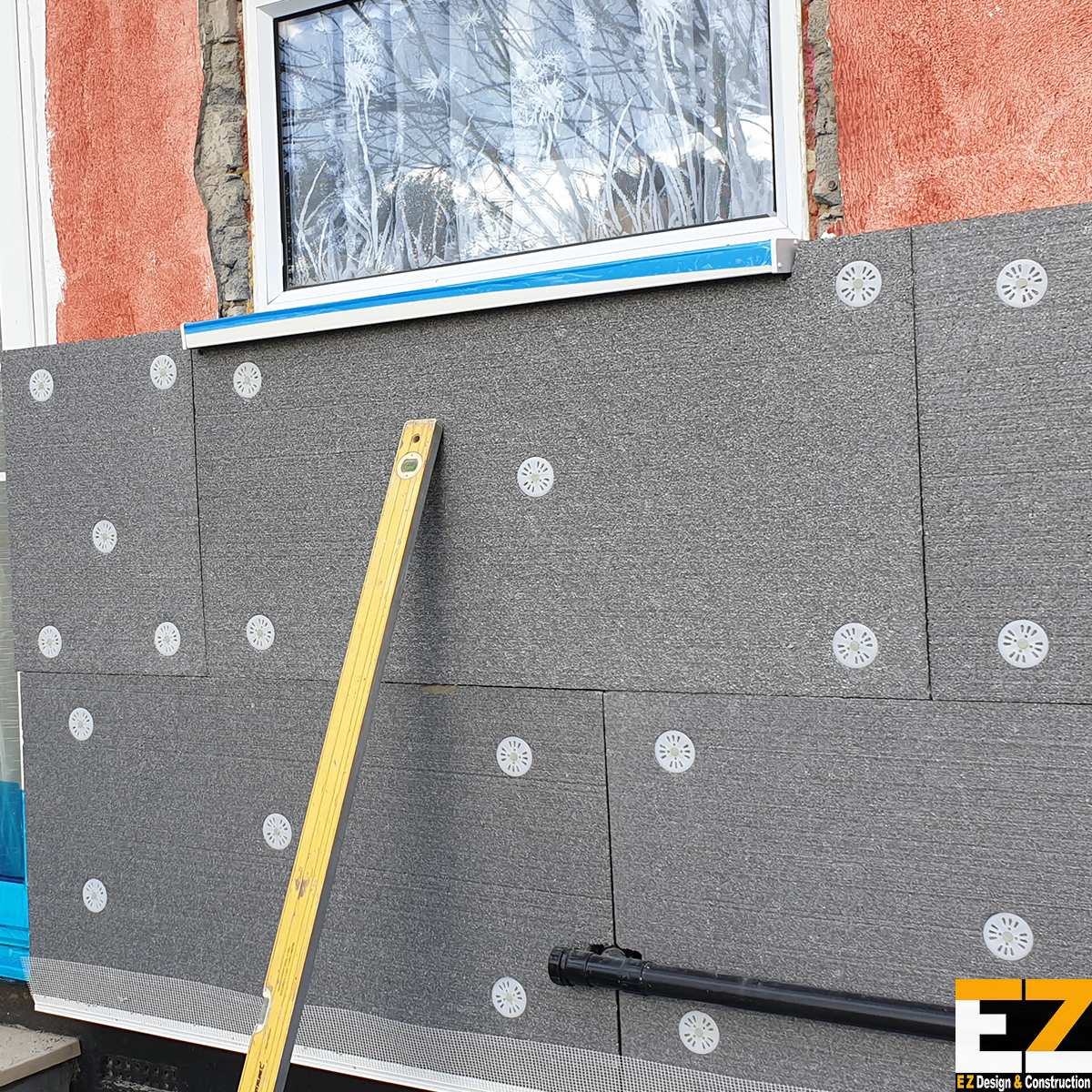

- Fixing Method: Chemically bonded using proprietary adhesive and mechanically fixed to solid masonry substrate
- Mechanical Fixings: 8mm diameter, 135mm length, metal pin hammer-set fixings
- Reinforcement Layer: Polymer-modified basecoat with embedded alkali-resistant fibreglass mesh to enhance impact resistance and minimise cracking risk
- Finish Coat: 1.5mm grain silicone render
- Colour: Pure White
- Performance Characteristics: Vapour-permeable, water-repellent façade finish designed for long-term durability in UK weather conditions
- Detailing: Careful treatment to all openings, corners and junctions including installation of powder-coated aluminium window oversills (1.2mm thick, 150mm depth) to extend beyond the new insulation line and maintain effective drip protection
- Outcome: This External Wall Insulation Sidcup project delivered enhanced thermal performance, reduced internal cold bridging and condensation risk, and a clean, contemporary external finish
Project Outcomes: External Wall Insulation Sidcup – Thermal & Aesthetic Benefits
- Superior Thermal Performance: Successfully insulated the original solid masonry, creating a high-performance thermal envelope that drastically reduces heat loss.
- Eliminated Cold Spots: Raised the temperature of internal wall surfaces, removing the “chill” typically associated with pre-1930s homes.
- Energy Bill Reduction: Lowered the property’s energy demand, allowing the heating system to run more efficiently and hold warmth for longer.
- Condensation Control: Mitigated the risk of surface condensation and damp by keeping the structural walls above the dew point.
- Modern Visual Upgrade: Replaced the failing, aged roughcast with a sleek, contemporary silicone render finish.
- Precision Detailing: Achieved high-quality finishes around window reveals and junctions, ensuring the insulation system is watertight and aesthetically sharp.
- Weather-Resistant Durability: Installed a breathable, flexible silicone topcoat specifically designed to withstand the UK’s wet climate.
- Reduced Cracking Risk: Utilized a reinforced fiberglass mesh within the basecoat to provide long-term structural flexibility.
- Low Maintenance Living: The self-cleaning properties of the new render mean significantly less upkeep compared to traditional painted masonry.
- Fabric Preservation: Added a protective external layer that shields the 100-year-old brickwork from freeze-thaw damage.
- EPC Support: Provided the necessary thermal upgrades to help improve the property’s Energy Performance Certificate (EPC) rating.
Related Rendering & Insulation Services in Sidcup
| External Wall Insulation | External Rendering |
| Self-Cleaning Render | Silicone Render |
| Sand and Cement Render | Lime Render |
| Cork Render | Monocouche Render |
| Acrylic Render | Insulated Render |
| Plastering (Internal Skimming) | Brick Slips |
| Ashlar Cut Effect Render | Colour Render |
Other Nearby External Wall Insulation Projects
| Orpington | West Wickham |
| Beckenham | Orpington |
| Chislehurst | New Eltham |
| Bromley | Eltham |
| Mottingham | Petts Wood |
| Avery Hill | Sundridge |

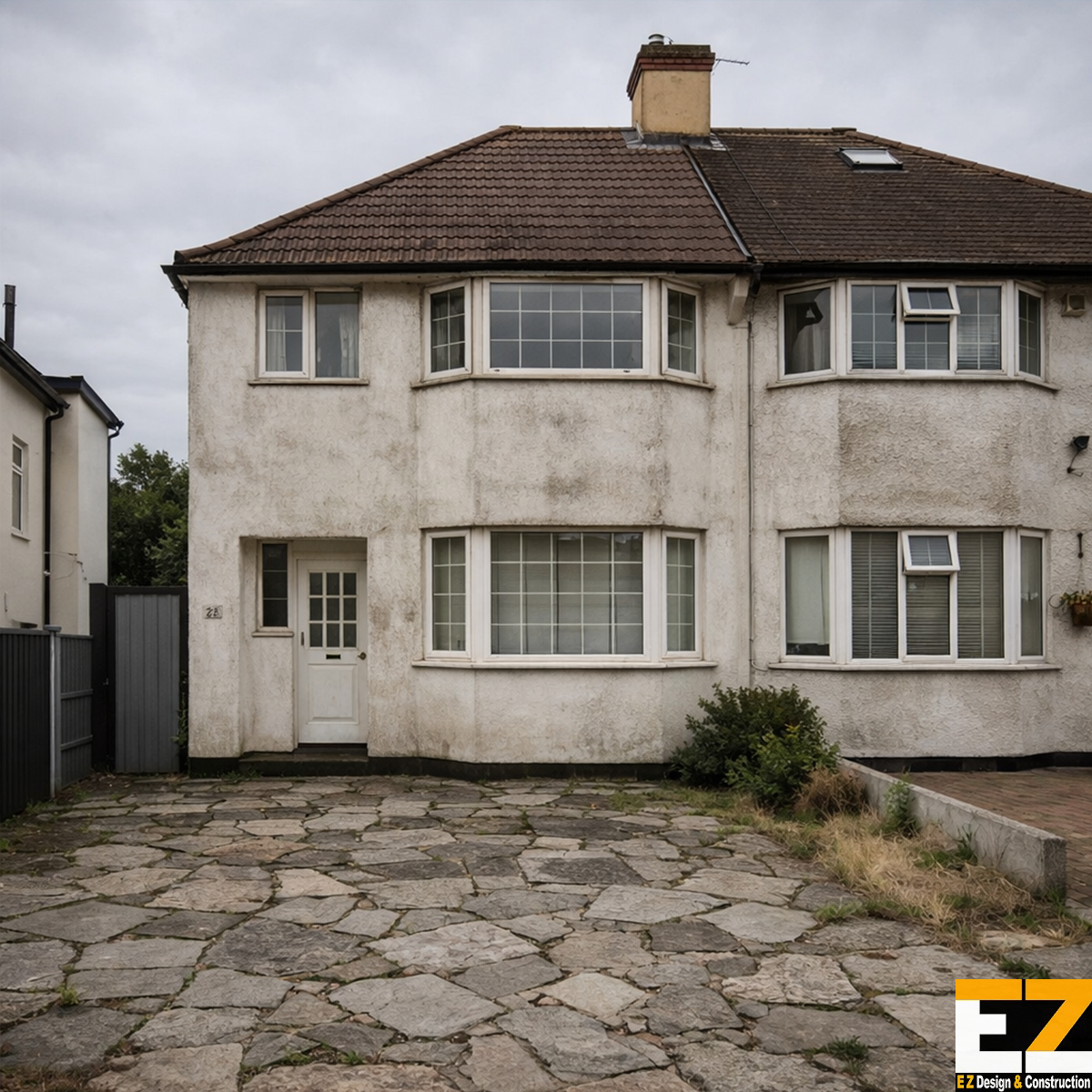

Before: This property in Sidcup shows the original solid-wall construction prior to installation. The uninsulated masonry walls were contributing to heat loss, internal cold spots and higher energy demand — common issues addressed by our External Wall Insulation Sidcup service.
For full system details, installation methods and local coverage information, visit our External Wall Insulation Sidcup service page.

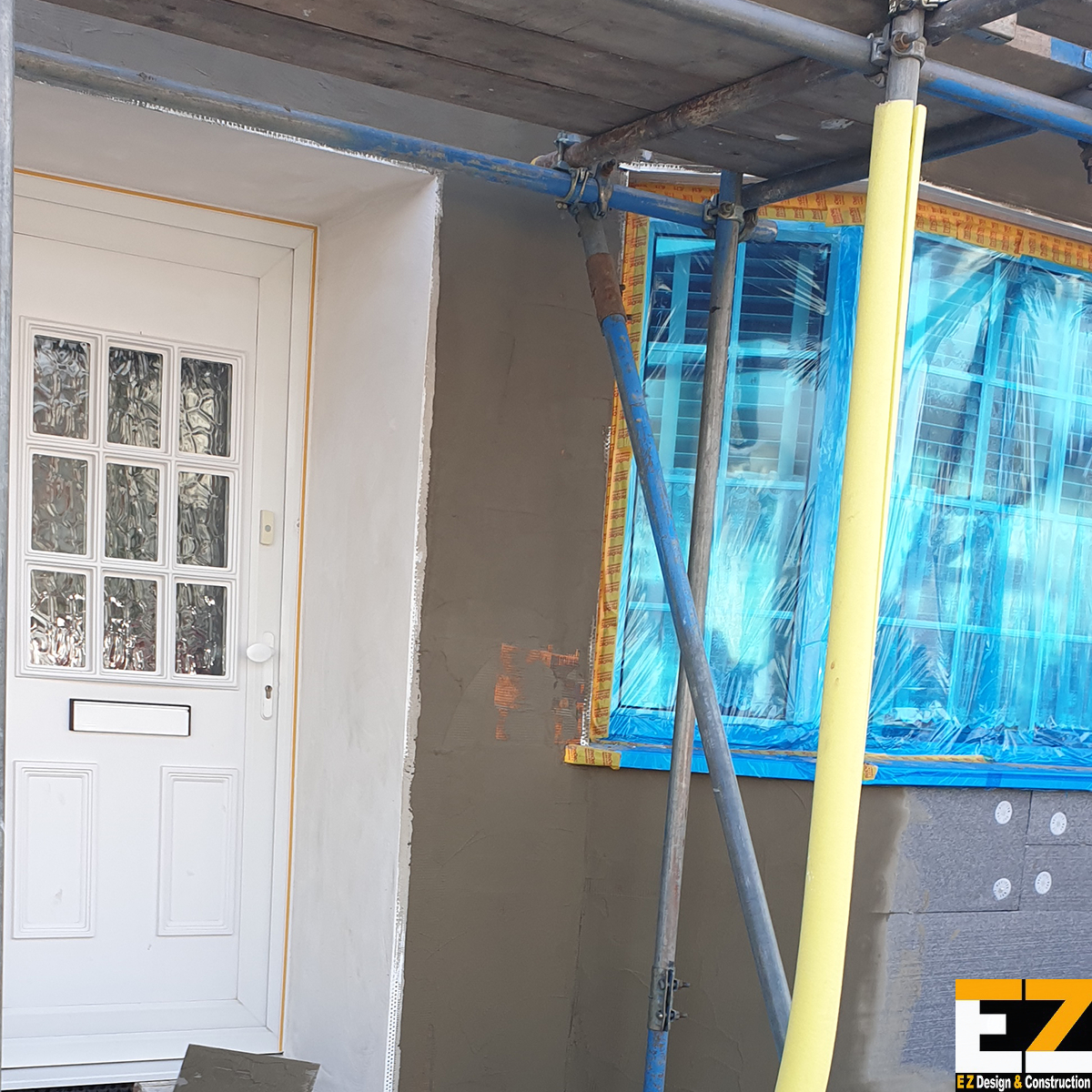

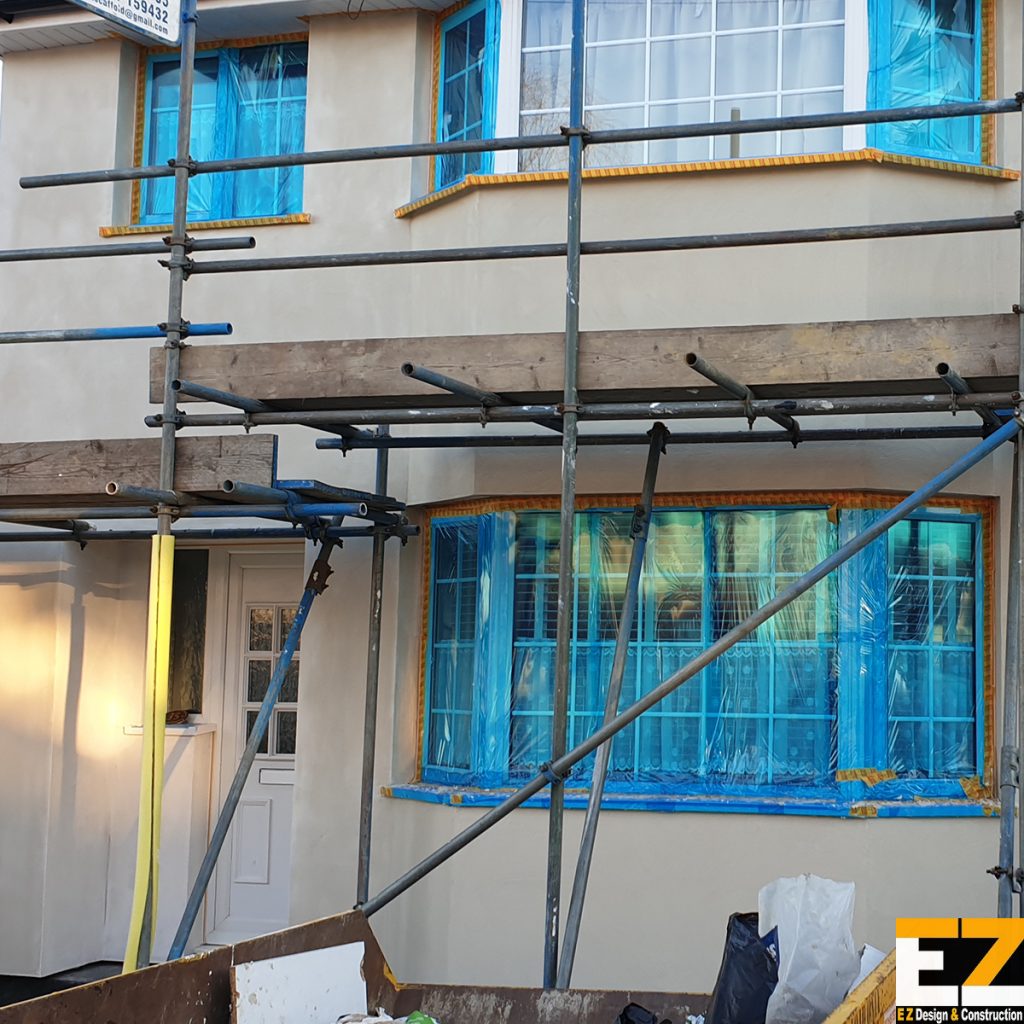

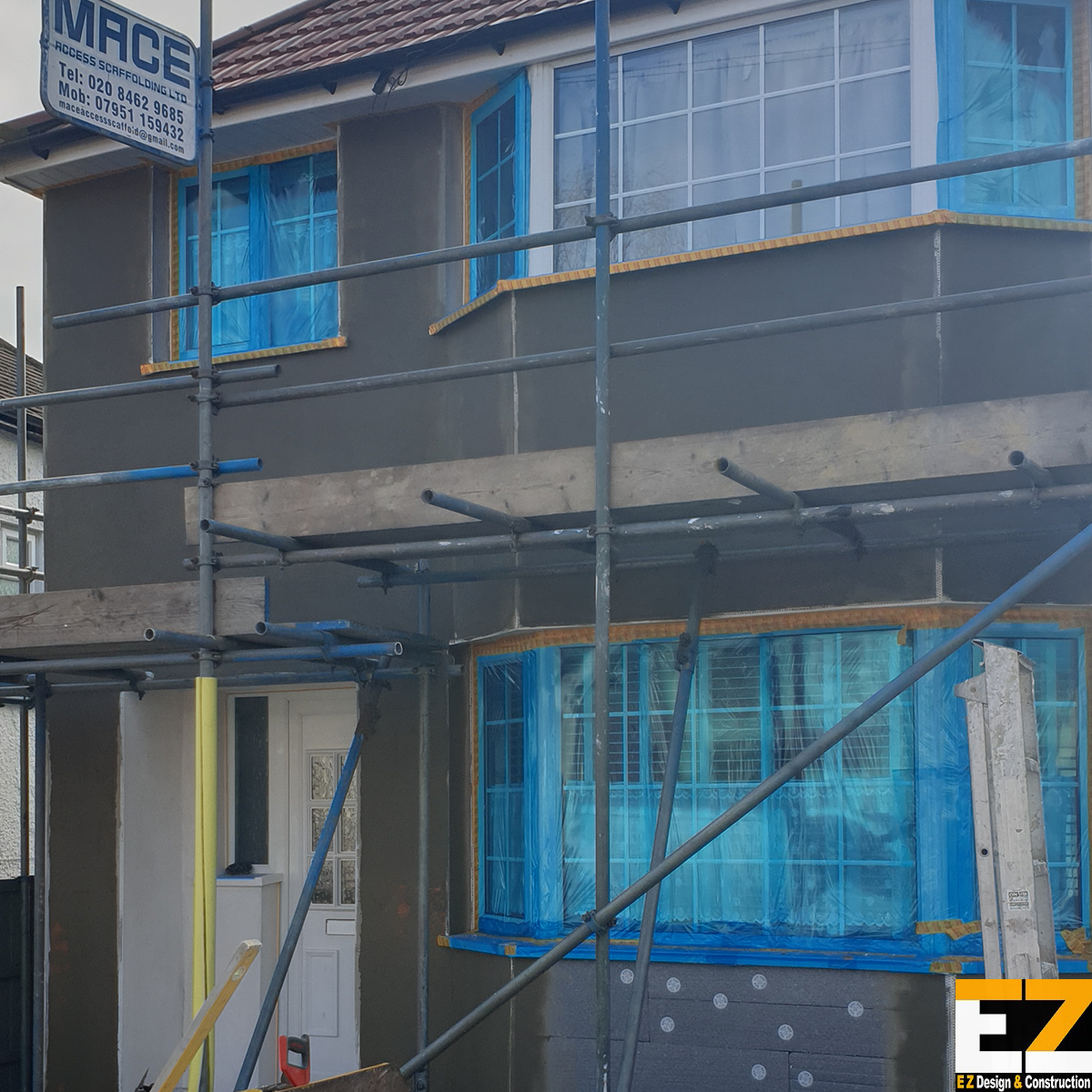

During: Our EWI installers in Sidcup applied a reinforced basecoat over securely fixed insulation boards as part of this Solid Wall Insulation Sidcup DA15 installation. This critical stage strengthens the system, minimises future cracking risk and forms part of the layered external wall insulation build-up designed for long-term durability and thermal performance.
For full system specifications, insulation options and borough-wide coverage details, visit our External Wall Insulation in Sidcup service page.
Before: This property in Sidcup shows the original solid-wall construction prior to installation. The uninsulated masonry walls were contributing to heat loss, uneven internal temperatures and poor overall performance — issues commonly resolved through Energy Efficiency Improvements Sidcup homeowners achieve with our insulation systems and Silicone Render Finish Sidcup installations.
To learn more about our installation methods, insulation systems and decorative finishes, visit our External Wall Insulation Sidcup service page.
External Wall Insulation – Sidcup – Frequently Asked Questions
Is this a real External Wall Insulation Sidcup project?
Yes. This page serves as documentation for a genuine External Wall Insulation Sidcup case study completed by our team. This External Wall Insulation in Sidcup project demonstrates the full installation process, from initial solid wall preparation to the final silicone render finish.
What type of property is shown in this Sidcup EWI case study?
This project was carried out on a pre-1930s semi-detached home in the Sidcup area. These period properties typically feature solid masonry walls with no cavity, making them ideal candidates for external thermal upgrades.
What issues were identified before starting this Sidcup installation?
Before the installation, the property suffered from deteriorating roughcast and cold internal wall surfaces. Homeowners considering Solid Wall Insulation Sidcup DA15 often report condensation and high heating costs due to the poor thermal retention of original solid masonry walls.
Why is EWI suitable for solid wall houses in Sidcup and DA15?
Most pre-1930 homes in Sidcup, Blackfen, and Bexley have no cavity to insulate. External Wall Insulation in Sidcup is one of the most effective ways to wrap the building in a continuous thermal layer without losing internal floor space.
What insulation material was used for this Sidcup project?
We used high-performance Expanded Polystyrene (EPS) insulation boards. EPS is the industry standard for residential projects in the Sidcup area due to its excellent U-value improvement and cost-effectiveness.
What insulation thickness was installed for this Sidcup property?
We installed 90mm EPS boards. This thickness provides a massive boost in energy efficiency while ensuring that roof lines, window reveals, and property boundaries in tight residential streets remain neat and practical.
How were the insulation boards fixed to the solid masonry?
The boards were secured using a “dual-fix” method: they were chemically bonded with high-strength adhesive and then mechanically fixed into the brickwork to ensure long-term stability against the elements.
What mechanical fixings were used on this Sidcup job?
Our team used 8mm diameter, 135mm long metal-pin hammer-set fixings. These are specifically selected to penetrate deep into the solid masonry substrate for a secure hold.
Was reinforcement mesh used on the Sidcup property?
Yes, a full layer of alkali-resistant fiberglass reinforcement mesh was embedded into the basecoat. This is a standard part of our high-quality installations in Sidcup to prevent future cracking and improve impact resistance.
Are “stress patches” necessary for window corners?
Absolutely. We apply diagonal “stress patches” (extra mesh) to every window and door corner. This prevents the diagonal cracks often seen in poorly installed render systems on older Sidcup homes.
What render finish was chosen for this Sidcup case study?
The client opted for a 1.5mm grain smooth silicone render. Silicone is highly breathable and flexible, making it the perfect choice for the traditional building fabric found in the DA15 area.
What color render was applied to this project?
The project was finished in a crisp “Pure White.” This provides a modern, clean aesthetic that significantly improves the curb appeal compared to the original weathered roughcast.
How were window sills extended for the new insulation?
To accommodate the new 90mm insulation layer, we installed 1.2mm thick powder-coated aluminium oversills. These ensure rainwater is shed safely away from the new facade, protecting the property’s longevity.
Will EWI change the appearance of my Sidcup home?
Yes, EWI offers a complete external transformation. Many homeowners in Sidcup choose this service specifically to modernize the look of their property while solving thermal issues.
Does this system help with internal condensation and damp?
Most pre-1930 homes in Sidcup, Blackfen, and Bexley have no cavity to insulate. External Wall Insulation Sidcup is one of the most effective ways to wrap the building in a continuous thermal layer without losing internal floor space.
How long does a typical EWI project in Sidcup take?
While weather-dependent, most residential projects in Sidcup are completed in 2 to 3 weeks. We stage the work carefully to ensure the basecoat and render have proper drying times for a perfect finish.
How do I maintain my new silicone render in Sidcup?
Silicone render is extremely low-maintenance and self-cleaning. An occasional gentle wash with a garden hose is usually all that’s needed to keep your Sidcup home looking brand new for years.
